Excel to XML component

The Excel to XML component provides a way to select specific ranges of a Excel document and aggregate them together in a single XML body. Each Excel range can be specified by a single rule

Configuration

Each rule has the following configuration options:

• Node name
• Worksheet
• Cell range
• Transpose
• Has header row
• Discard empty cells

Node name

Description

Each rule starts with a name. The data of the specified cell range will be wrapped in an XML node with this name.

Remarks

• Since it will be used in an XML element the following rules apply:
  • Names can't start with a digit
  • Names can't start with special characters like hypens or periods
  • Names can't start with any variation of 'xml'
  • Names can't contain special characters other than the period, hyphen, underscore, and colon

Worksheet

Description

Excel documents can contain mutliple worksheets. You have to specify the exact name of the worksheet from which the date of the cell range will be taken.

Cell range

Description

The cell range from which the data will be taken and wrapped into the specified XML node name.

Remarks

• You have to use contiguous cell series, for example B2:B11. Single cells like B2;B4;B6;B8;B10 are not supported.

Transpose

Description

By enabling this option you can switch data from columns to rows, or vice versa.

Has header row

Description

By enabling this option, the top row of the rule's cell range will be used to name the child XML nodes.

Remarks

• Invalid XML characters will be filtered out from the header row values automatically.
• If Has header row is selected but that row has empty cells, those will fall back to the standard naming strategy.

Discard empty cells

Description

By enabling this option, cells without any value will not be added to the XML output.

Remarks

• When Discard empty cells is enabled and all cells in a row are empty, the full row will be discarded.

Actions

Every rule has some actions:

• Add a new rule
• Duplicate a rule
• Remove a rule

Add a new rule

The new rule is added below the current rule.

Duplicate a rule

The duplicated rule is added below the current rule.

Remove a rule

Example

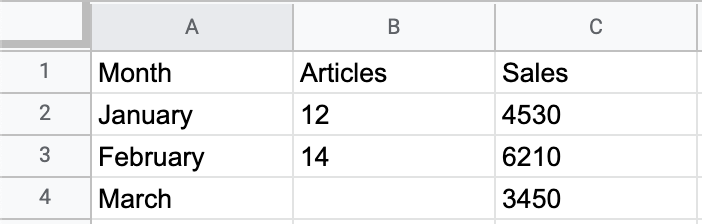

This example spreadsheet:

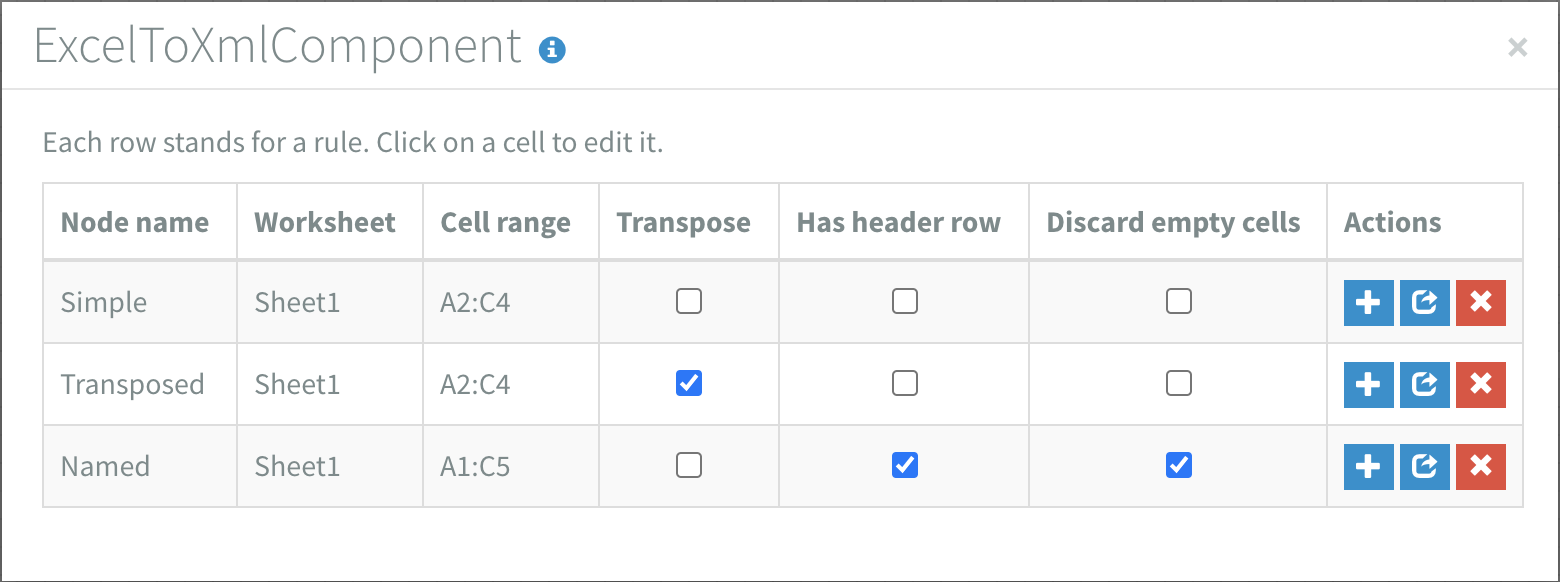

Combined with this Excel to XML component configuration:

Will yield this XML:

<?xml version="1.0" encoding="UTF-8"?>
<Excel>
    <Simple>
        <excelRow>
            <cell colIndex="A" rowIndex="1">January</cell>
            <cell colIndex="B" rowIndex="1">12</cell>
            <cell colIndex="C" rowIndex="1">4530</cell>
        </excelRow>
        <excelRow>
            <cell colIndex="A" rowIndex="2">February</cell>
            <cell colIndex="B" rowIndex="2">14</cell>
            <cell colIndex="C" rowIndex="2">6210</cell>
        </excelRow>
        <excelRow>
            <cell colIndex="A" rowIndex="3">March</cell>
            <cell colIndex="B" rowIndex="3"/>
            <cell colIndex="C" rowIndex="3">3450</cell>
        </excelRow>
    </Simple>
    <Transposed>
        <excelCol>
            <cell colIndex="A" rowIndex="1">January</cell>
            <cell colIndex="A" rowIndex="2">February</cell>
            <cell colIndex="A" rowIndex="3">March</cell>
        </excelCol>
        <excelCol>
            <cell colIndex="B" rowIndex="1">12</cell>
            <cell colIndex="B" rowIndex="2">14</cell>
            <cell colIndex="B" rowIndex="3"/>
        </excelCol>
        <excelCol>
            <cell colIndex="C" rowIndex="1">4530</cell>
            <cell colIndex="C" rowIndex="2">6210</cell>
            <cell colIndex="C" rowIndex="3">3450</cell>
        </excelCol>
    </Transposed>
    <Named>
        <excelRow>
            <Month>January</Month>
            <Articles>12</Articles>
            <Sales>4530</Sales>
        </excelRow>
        <excelRow>
            <Month>February</Month>
            <Articles>14</Articles>
            <Sales>6210</Sales>
        </excelRow>
        <excelRow>
            <Month>March</Month>
            <Sales>3450</Sales>
        </excelRow>
    </Named>
</Excel>

Try it yourself:

Example spreadsheet

Remarks

• The symbols <, >, & and “ in Excel data will be replaced by <, >, " and ' respectively.
• Each formula will be transformed into a value. Formulas that result in a number will by default have one decimal, but if there are more decimals you will get the rest as well, for example 1÷3 will result in 0.333333333333333.
• In order to handle huge XML-output it could be necessary to set a flow in synchronous mode. For example: a worksheet with 200.000 rows and 12 colums can create an XML output of 150 MB.
